Flanges Pipe are a very versatile and important component in many piping systems. They allow for easy connection and disconnection of pipes, valves, and other equipment essential for maintenance and inspection.

What are Flanges Pipe?

Flanges Pipe are essential components in many piping systems. They allow for easy connection and disconnection of pipes, valves, and other equipment essential for maintenance and inspection. Flange pipe is also used to blank off a pipe’s end or connect pipes with different diameters.

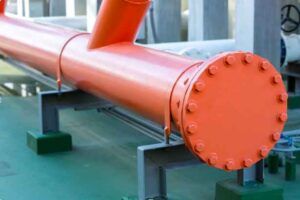

Flanges Pipe

Image Source: Texas Flange

This article will provide a complete solution to your flanges pipe needs. We will discuss the different types of flanges pipe, the materials used for flanges pipe, and how to select and install it. We will also provide tips on flanges inspection and maintenance.

Types of Flanges Pipe

There are many different flanges pipe, each with advantages and disadvantages. The most common types of flanges are:

  1. Weld neck flanges: Weld neck flanges pipe are the strongest and typically used in high-pressure and high-temperature applications.
  2. Slip-on flanges: Slip-on flanges pipe are less expensive than weld neck flanges pipe but are not as strong. They are typically used in lower-pressure applications.
  3. Lap joint flanges: Lap joint flanges pipe connect two pipes with different diameters. They are typically used in lower-pressure applications.
  4. Blind flanges: Blind flanges pipe are used to blank off the end of a pipe. They are typically used for isolation or testing purposes.

Benefits of Flanges pipe

  • Easy to install and disassemble: Flanges pipe connections are relatively easy to install and disassemble, which makes them ideal for applications where maintenance is important.
  • Can withstand high pressures and temperatures: Flanges pipe connections can be designed to withstand high pressures and temperatures, making them suitable for a wide range of applications.
  • Leak-tight: Flanges pipe connections can be made very leak-tight, which is important for applications where hazardous fluids are being transported.
  • Versatile: Flanges pipe connections can be used to connect a variety of different types of pipes and fittings, making them a very versatile solution.

What materials are used for the Flanges Pipe?

Flanges pipe are made from various materials, depending on the application. The most common materials used for flanges are:

  • Carbon steel: Carbon steel is the most common material used for flanges pipe because it is relatively inexpensive and easy to work with.
  • Stainless steel: Stainless steel flanges pipe are used in applications requiring corrosion resistance.
  • Alloy steel: Alloy steel flanges pipe are used in high-pressure and high-temperature applications.
  • Cast iron: Cast iron flanges pipe are used in low-pressure applications.

Gaskets and their types:

Gaskets are essential components in flange pipe connections. They provide a seal between the flanges, preventing leaks and ensuring the safety and reliability of the piping system.

The most common types of gaskets for flange pipe connections are:

  • Rubber gaskets: Rubber gaskets are the most common type of gasket used for flange pipe connections. They are relatively inexpensive and easy to install. However, rubber gaskets can degrade over time, especially when exposed to extreme temperatures or chemicals.
  • Metal gaskets: Metal gaskets are more expensive than rubber gaskets, but they are also more durable and can withstand higher temperatures and pressures. Metal gaskets are often used in applications where rubber gaskets would not be suitable.
  • Composite gaskets: Composite gaskets are made from a combination of materials, such as rubber and metal. They offer the benefits of both rubber and metal gaskets, such as durability and resistance to extreme temperatures and chemicals. Composite gaskets are often used in critical applications where safety and reliability are paramount.

Here are some additional tips for using gaskets in flange pipe connections:

  • Make sure that the gasket you select is the correct size and type for the flange connection.
  • Clean and deburr the flange faces before installing the gasket.
  • Use a lubricant on the flange faces to help the gasket seat properly.
  • Tighten the flange bolts evenly to the specified torque.
  • Inspect the gasket regularly for signs of damage or wear.

How to select flanges

When selecting flanges, it is important to consider the following factors:

  • Pressure: The pressure rating of the flanges must be equal to or greater than the pressure rating of the piping system.
  • Temperature: The temperature rating of the flanges must be equal to or greater than the temperature rating of the piping system.
  • Media: The material of the flanges must be compatible with the media being transported through the piping system.
  • Cost: Flanges can range in price from a few dollars to several hundred dollars. It is important to choose flanges that fit your budget.

How to install flanges

To install flanges, follow these steps:

  • Prepare the pipe ends by cleaning and deburring them.
  • Place the gaskets on the flanges.
  • Align the flanges and bolt them together.
  • Tighten the bolts to the specified torque.

Inspecting and maintaining Flanges pipe

It is important to inspect and maintain flange pipe connections on a regular basis to ensure their integrity. Flanges should be inspected for signs of corrosion, cracking, and wear. If any damage is found, the flanges should be repaired or replaced immediately.

Here are some additional tips for inspecting and maintaining flange pipe connections:

  • Inspect the flanges regularly for signs of damage or wear.
  • Tighten the flange bolts to the specified torque on a regular basis.
  • Replace the gaskets on a regular basis or if they show any signs of damage.
  • Use a lubricant on the flange faces to help the gasket seal properly.

FAQs

Q1. What is the purpose of a flange in a piping system?

Explain the primary role of flanges in connecting pipes, valves, and other components in a piping system.

Q2. How do I choose the right type of flange for my specific application?

Offer guidance on selecting the appropriate type of flange based on the application’s requirements.

Q3. What are some common materials used in manufacturing flanges?

Provide an overview of materials commonly used, such as carbon steel, stainless steel, and alloys.

Q4. Why is proper installation and maintenance of flanges important?

Emphasize the significance of correct installation and maintenance in preventing leaks and ensuring system reliability.

Q5. Can you provide examples of industries where flanges play a crucial role?

Highlight specific industries, such as oil and gas, chemical processing, and water treatment, where flanges are integral to operations.

Conclusion

In conclusion, Flanges pipe are essential components in many piping systems. By understanding the different types of flanges, the materials used for flanges, and how to select and install flanges pipe, you can ensure that your piping system is safe and reliable.
