How to Select the Right Flanges Pipe for Your Project?

Selecting the right flanges pipe for your project is crucial for ensuring the efficiency, safety, and longevity of your piping system. The choice involves considering various factors such as the type of flange, material, pressure and temperature ratings, and application requirements. This article provides a comprehensive guide on how to select the appropriate flanges pipe for your specific project needs.

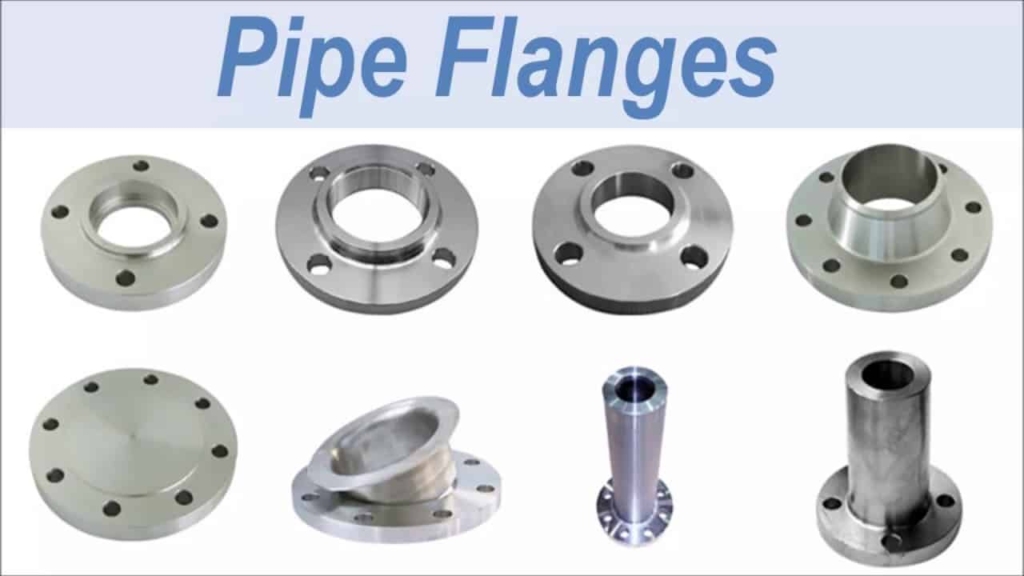

Select the Right Flanges Pipe for Your Project

Understanding Flanges Pipe

Flanges are mechanical components used to connect pipes, valves, pumps, and other equipment in a piping system. They provide a secure, leak-proof connection and allow for easy assembly and disassembly of the system for maintenance and inspection.

Types of Flanges

Weld Neck Flanges:

  • Description: Features a long tapered hub that is welded to the pipe.
  • Applications: Suitable for high-pressure and high-temperature applications.

Slip-On Flanges:

  • Description: Slides over the pipe and is welded in place.
  • Applications: Commonly used in low-pressure applications.

Blind Flanges:

  • Description: Used to close the end of a pipe.
  • Applications: Ideal for inspection and maintenance access points.

Socket Weld Flanges:

  • Description: The pipe is inserted into a socket and welded.
  • Applications: Suitable for small diameter high-pressure applications.

Lap Joint Flanges:

  • Description: Used with a stub end, providing a loose connection.
  • Applications: Useful in systems requiring frequent assembly and disassembly.

Threaded Flanges:

  • Description: Features a threaded bore, allowing pipes to be screwed into place.
  • Applications: Suitable for low-pressure, non-critical applications.

Key Factors to Consider

1. Application Requirements

Different applications have specific requirements that influence the choice of flanges. Consider factors such as the type of fluid, flow rate, and the operating environment.

Factors to Consider:

  • Fluid Type: Determine if the fluid is corrosive, abrasive, or contains particulates.
  • Flow Rate: Ensure the flange can handle the required flow rate without causing excessive pressure drop.
  • Environment: Consider environmental factors such as temperature, humidity, and exposure to chemicals.

2. Material Selection

The material of the flange must be compatible with the piping material and the fluid it will carry.

Common Materials:

  • Carbon Steel: Suitable for high-temperature and high-pressure applications.
  • Stainless Steel: Offers excellent corrosion resistance, ideal for corrosive environments.
  • Alloy Steel: Provides enhanced mechanical properties and corrosion resistance.
  • PVC/Plastic: Used in low-pressure, non-corrosive applications.

3. Pressure and Temperature Ratings

Flanges are rated for different pressure and temperature ranges. Ensure the selected flange can withstand the operating conditions of your system.

Standards:

  • ANSI/ASME B16.5: Standard for pipe flanges and flanged fittings.
  • API 6A: Specification for wellhead and Christmas tree equipment.
  • EN 1092-1: European standard for steel flanges.

4. Size and Dimensions

Flange;s come in various sizes and dimensions. Ensure the flange matches the pipe size and the required bolt pattern.

Factors to Consider:

  • Nominal Pipe Size (NPS): The diameter of the pipe.
  • Pressure Class: The pressure rating of the flange (e.g., 150, 300, 600, etc.).
  • Bolt Circle Diameter: The distance between the center of the bolt holes.

5. Compatibility with Existing Systems

If you are integrating new flanges into an existing system, ensure compatibility with the current components.

Factors to Consider:

  • Flange Facing Type: Ensure the facing type matches (e.g., raised face, flat face).
  • Bolt Pattern: Match the bolt pattern and size to existing flanges.
  • Material Compatibility: Ensure the new flange material is compatible with existing piping.

Steps to Select the Right Flanges Pipe:

Step 1: Identify Application Requirements

  • Determine Fluid Characteristics: Understand the type, temperature, and pressure of the fluid.
  • Assess Environmental Conditions: Consider the operating environment and any external factors.

Step 2: Choose the Appropriate Flange Type

  • Based on Application: Select a flange type that suits the application’s pressure, temperature, and maintenance needs.

Step 3: Select the Material

  • Match with Fluid and Environment: Choose a material that is compatible with the fluid and environmental conditions.

Step 4: Verify Pressure and Temperature Ratings

  • Check Standards: Ensure the flange meets the required pressure and temperature standards.

Step 5: Ensure Proper Sizing and Dimensions

  • Match Pipe Size: Ensure the flange size matches the nominal pipe size and required pressure class.
  • Check Bolt Pattern: Verify the bolt circle diameter and number of bolt holes.

Step 6: Confirm Compatibility with Existing Systems

  • Match Existing Components: Ensure the new flange is compatible with existing piping and components.

FAQs

1. What are the most common types of flanges used in piping systems?

  • The most common types are weld neck flanges, slip-on flanges, blind flanges, socket weld flanges, lap joint flanges, and threaded flanges.

2. How do I determine the right material for my flange?

  • Consider the type of fluid, operating temperature, pressure, and environmental conditions to select a compatible material.

3. What is the significance of pressure and temperature ratings for flanges?

  • Pressure and temperature ratings ensure that the flange can withstand the operating conditions without failure.

4. Why is it important to match the flange size and dimensions with the pipe?

  • Proper sizing ensures a secure fit and alignment, preventing leaks and ensuring system integrity.

5. Can I use different types of flanges in the same piping system?

  • Yes, but ensure they are compatible in terms of material, pressure ratings, and bolt patterns.

6. What are the standards for flanges?

  • Common standards include ANSI/ASME B16.5, API 6A, and EN 1092-1.

7. How often should flanges be inspected and maintained?

  • Regular inspections and maintenance should be performed based on the system’s operational demands and industry standards.

8. What factors should I consider for flange compatibility in existing systems?

  • Consider flange facing type, bolt pattern, size, and material compatibility with existing components.

9. How do I ensure a leak-proof connection with flanges?

  • Proper installation, correct torque application, and the use of appropriate gaskets ensure a leak-proof connection.

Conclusion

Selecting the right flanges pipe for your project involves careful consideration of application requirements, material compatibility, pressure and temperature ratings, and proper sizing. By following these steps, you can ensure that your piping system is efficient, safe, and reliable.
